Technical Overview
Frameset
Frame:

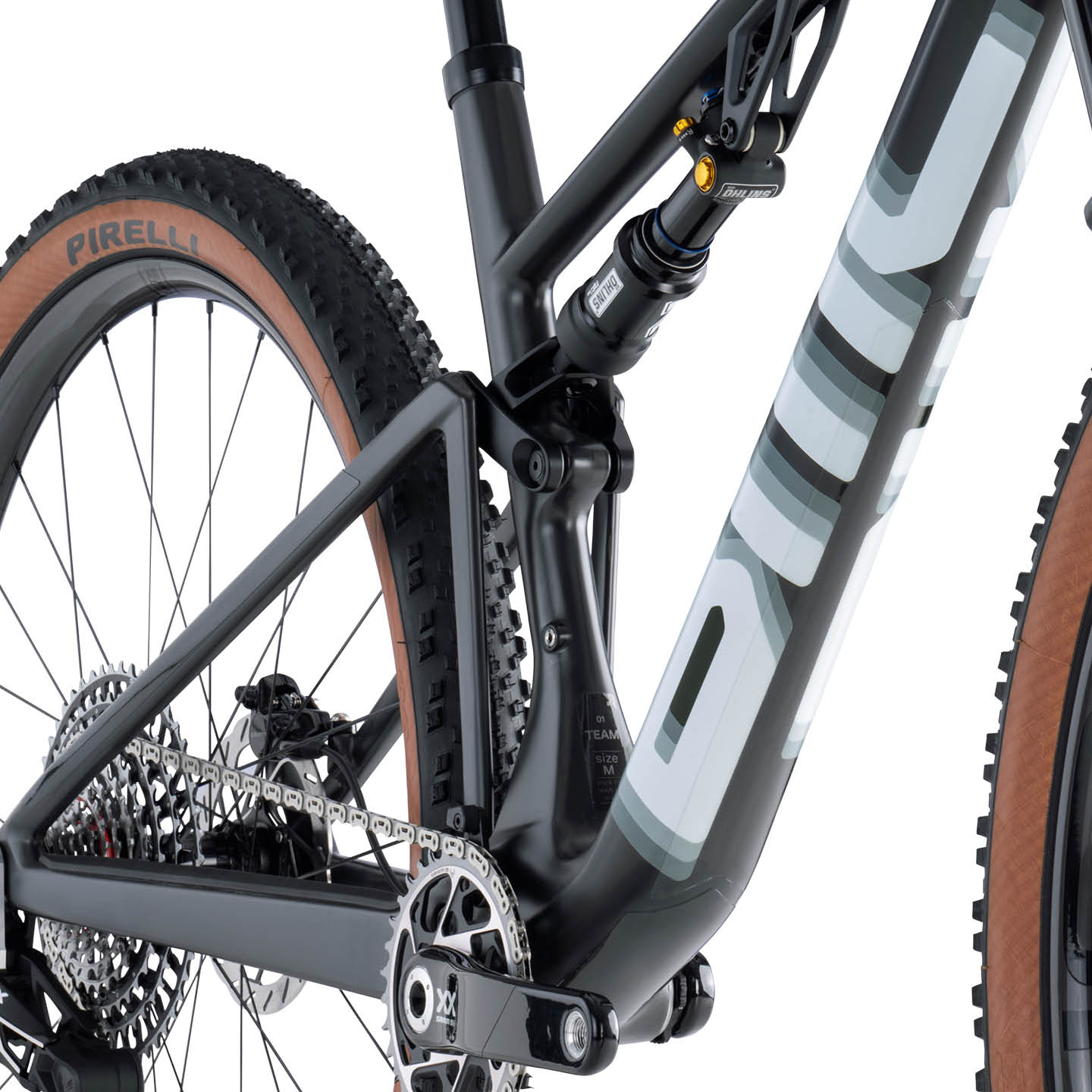

Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Fork:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout | 44mm offset
Suspension
Front Suspension:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout | 44mm offset
Rear Suspension:
Öhlins TXC2 Air | 120mm Travel | DT Swiss Remote Lockout
Remote Lockout:
DT Swiss Remote Lockout
Cockpit
Stem:
BMC MSM 01
Handlebar:
BMC MFB 01 Carbon | 760mm
Seat
Seatpost:

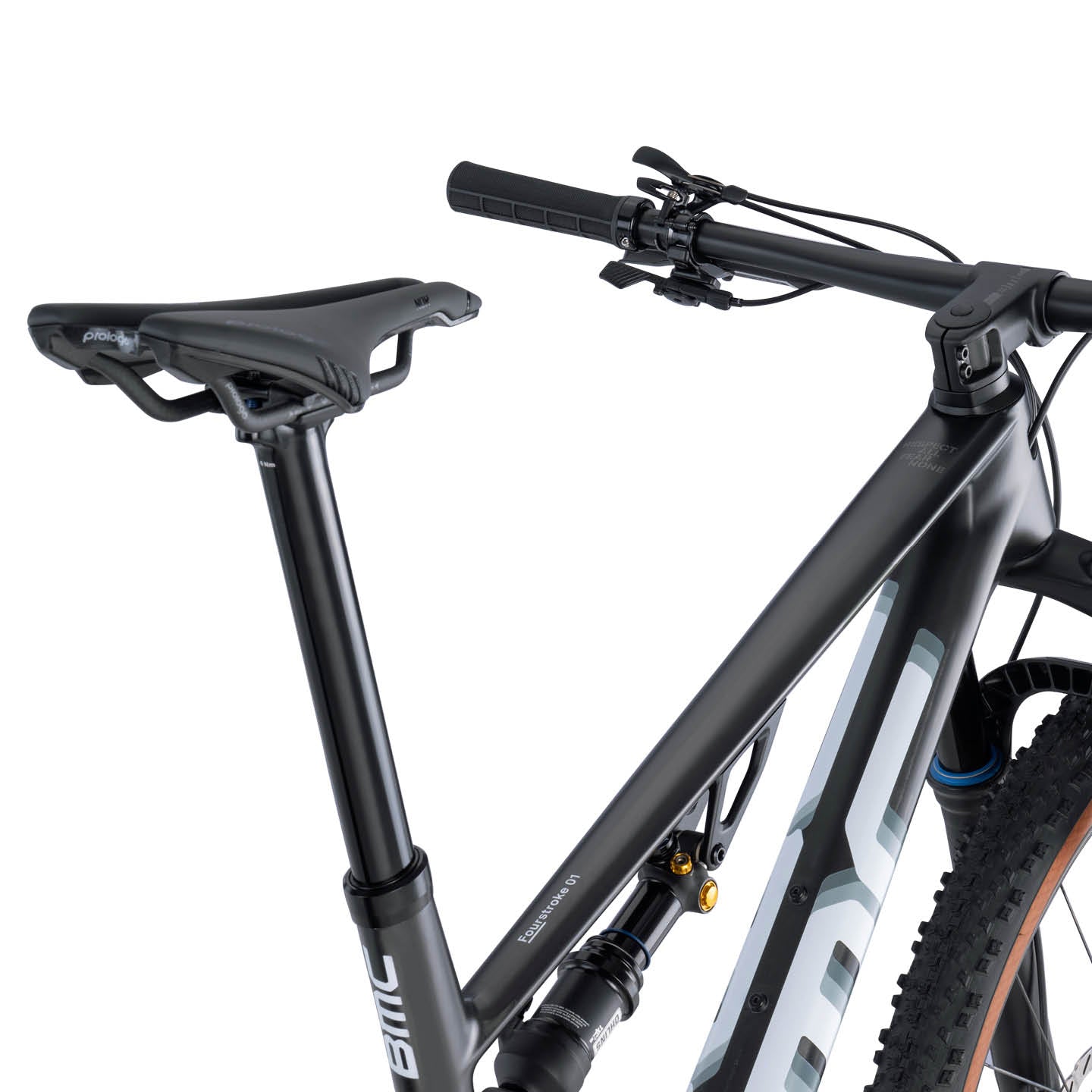

BMC Autodrop Integrated Dropper Seatpost | 80mm Drop
Saddle:
Prologo Dimension NDR
Drivetrain
Crankset:
SRAM XX SL Eagle Carbon
Chainrings:
34T
Cassette:
SRAM XX SL Eagle Transmission XS-1299
Cassette Size:
10-52T
Chain:
SRAM XX SL Eagle Transmission Flattop
Rear Derailleur:
SRAM XX SL Eagle Transmission
Shifters:
SRAM AXS Pod Controller
Gears:
1 x 12
Bottom Bracket:
PF92 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Level Ultimate
Rotors:
SRAM HS2
Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL
Wheels
Rims:
Duke Lucky Jack SLS4 | 28 Spokes | Inner Width 30mm (F), 28mm (R)
Hubs (F/R):
Duke Madmax
Tires:
Pirelli Scorpion XC RC | 2.4"
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Additional Information
Tire Clearance:
62mm measured tire
Weight without Pedals:
ASTM Classification:
Level 3
System Weight Limit:
110kg
