Name: Alpenchallenge AC02 Deore
Brand: BMC
SKU: BMC-17a-000010-s0050
Availability: OutOfStock

Color:
Model Year: 2017

BMC Archive Product

Compatible Parts & Accessories

Dropout - No 34

USD 15.00 View Product

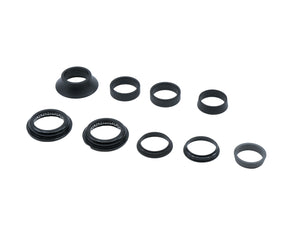

Headset FSA - No 10P

USD 49.00 View Product

[{"id":40946620137551,"title":"S","option1":"S","option2":null,"option3":null,"sku":"BMC-17a-000010-s0050","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Alpenchallenge AC02 Deore - S","public_title":"S","options":["S"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40946620497999,"title":"M","option1":"M","option2":null,"option3":null,"sku":"BMC-17a-000010-s0070","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Alpenchallenge AC02 Deore - M","public_title":"M","options":["M"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40946620629071,"title":"L","option1":"L","option2":null,"option3":null,"sku":"BMC-17a-000010-s0090","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Alpenchallenge AC02 Deore - L","public_title":"L","options":["L"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40946620989519,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"BMC-17a-000010-s0110","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Alpenchallenge AC02 Deore - XL","public_title":"XL","options":["XL"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
Alpenchallenge AC02 | Al-13 Butted - Hydroformed aluminum

Fork:
Al-13 Butted | Hydroformed aluminum

Cockpit

Handlebar:
BMC LSB 03

Stem:
BMC LSM 03

Seatpost:
BMC LSP 03

Saddle:
Selle Royal Sirio

Seat

Seatpost:
BMC LSP 03

Saddle:
Selle Royal Sirio

Drivetrain

Gears:
3 x 10

Crankset:
Shimano T521 | 48-36-26

Cassette:
Shimano HG62-10 | 11-34

Chain:
KMC X10

Front Derailleur:
Shimano Deore

Rear Derailleur:
Shimano Deore

Shifters:
Shimano Deore | Rapidfire Plus

Brakes

Brake Levers / Calipers:
Shimano M396 / RT30 rotors (160/160)

Wheels

Rims:
Alex X2100

Hubs (F/R):
Shimano M-3050

Tires:
Continental Sport Contact II | 35mm

Additional Information

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Reach	390	405	415	430
Stack	530	571	591	630
Bar Width	600	600	600	600
BB Drop	50	50	50	50
Crank Length	170	170	175	175
Fork Length	405	405	405	405
Fork Rake	48	48	48	48
Front Center	608	637	654	682
Head Tube	122	165	187	228
Head Tube Angle	71	71	71	71
Rear Center	436	436	436	436
Seat Angle	73	72.5	72.5	72
Seat Tube	440	510	560	610
Seatpost Length	350	350	350	350
Seatpost Offset	15	15	15	15
Stem Angle	±12	±12	±12	±12
Stem Length	90	100	110	120
Top Tube	552	585	601	634
Trail	68	68	68	68
Wheelbase	1039	1068	1085	1113
