Technical Overview
Frameset
Frame:

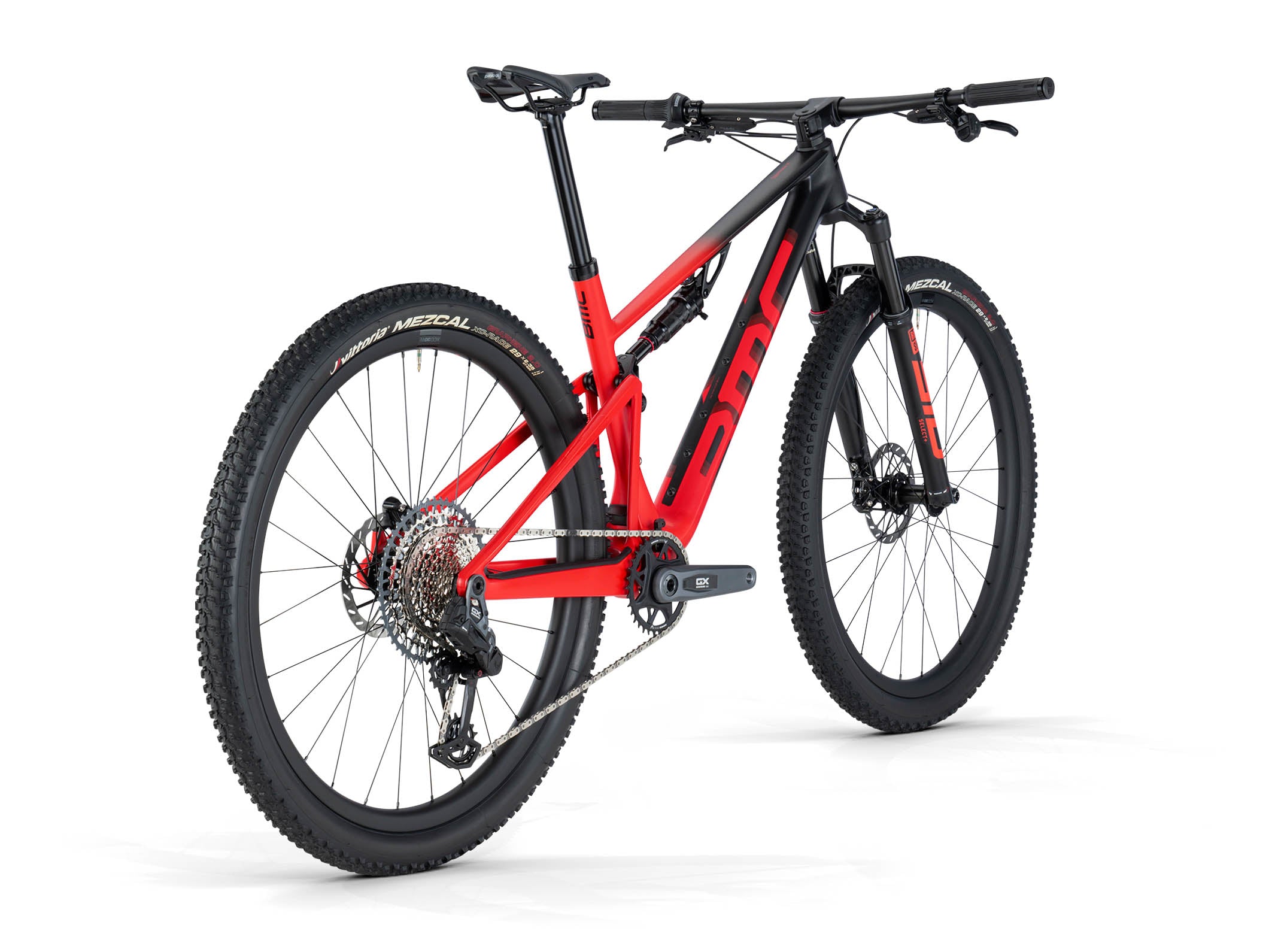

Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Fork:
RockShox SID SL Select+ | 110mm Travel
Suspension
Front Suspension:
RockShox SID SL Select+
Rear Suspension:
RockShox SIDLUXE Select+
Remote Lockout:
RockShox TwistLoc 3P
Cockpit
Stem:
BMC MSM 01
Handlebar:
BMC MFB 01 Carbon | 760mm
Seat
Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop
Saddle:
Prologo Dimension NDR
Drivetrain
Crankset:
SRAM GX Eagle
Chainrings:
34T
Cassette:
SRAM XS-1275 Eagle Transmission (CS-XS-1275-A1)
Cassette Size:
10-52T
Chain:
SRAM GX Eagle Transmission Flattop
Rear Derailleur:
SRAM GX Eagle Transmission
Shifters:
SRAM AXS Pod Controller
Gears:
1 x 12
Bottom Bracket:
PF92 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Level TLM
Rotors:
SRAM HS2
Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL
Wheels
Rims:
XCD-30W Carbon | 30mm Inner Width
Hubs (F/R):
XCD-30W
Tires:
Vittoria Mezcal | 2.35"
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Additional Information
Tire Clearance:
62mm measured tire
Weight without Pedals:
11.40kg
ASTM Classification:
Level 3
System Weight Limit:
110kg
