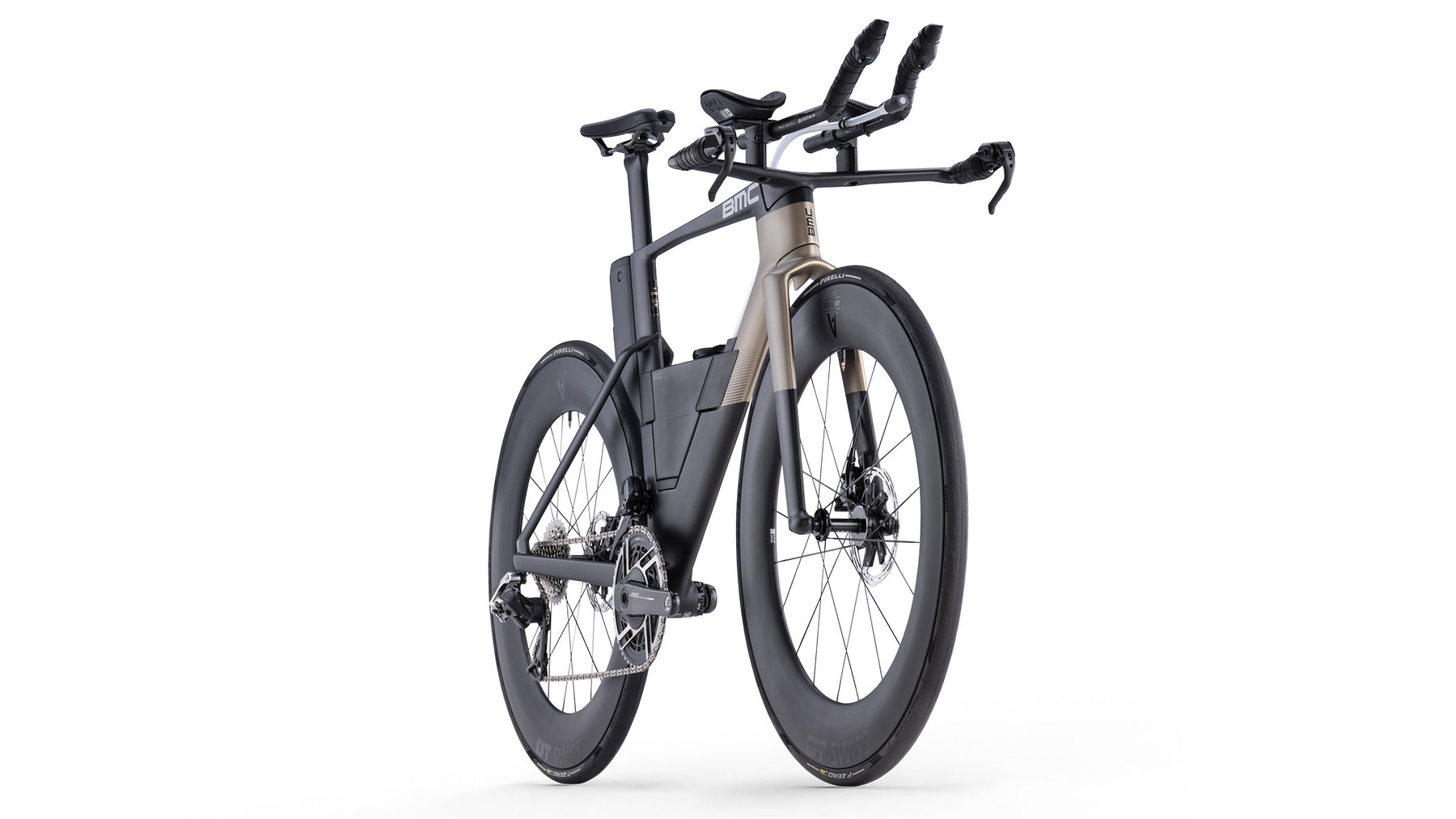

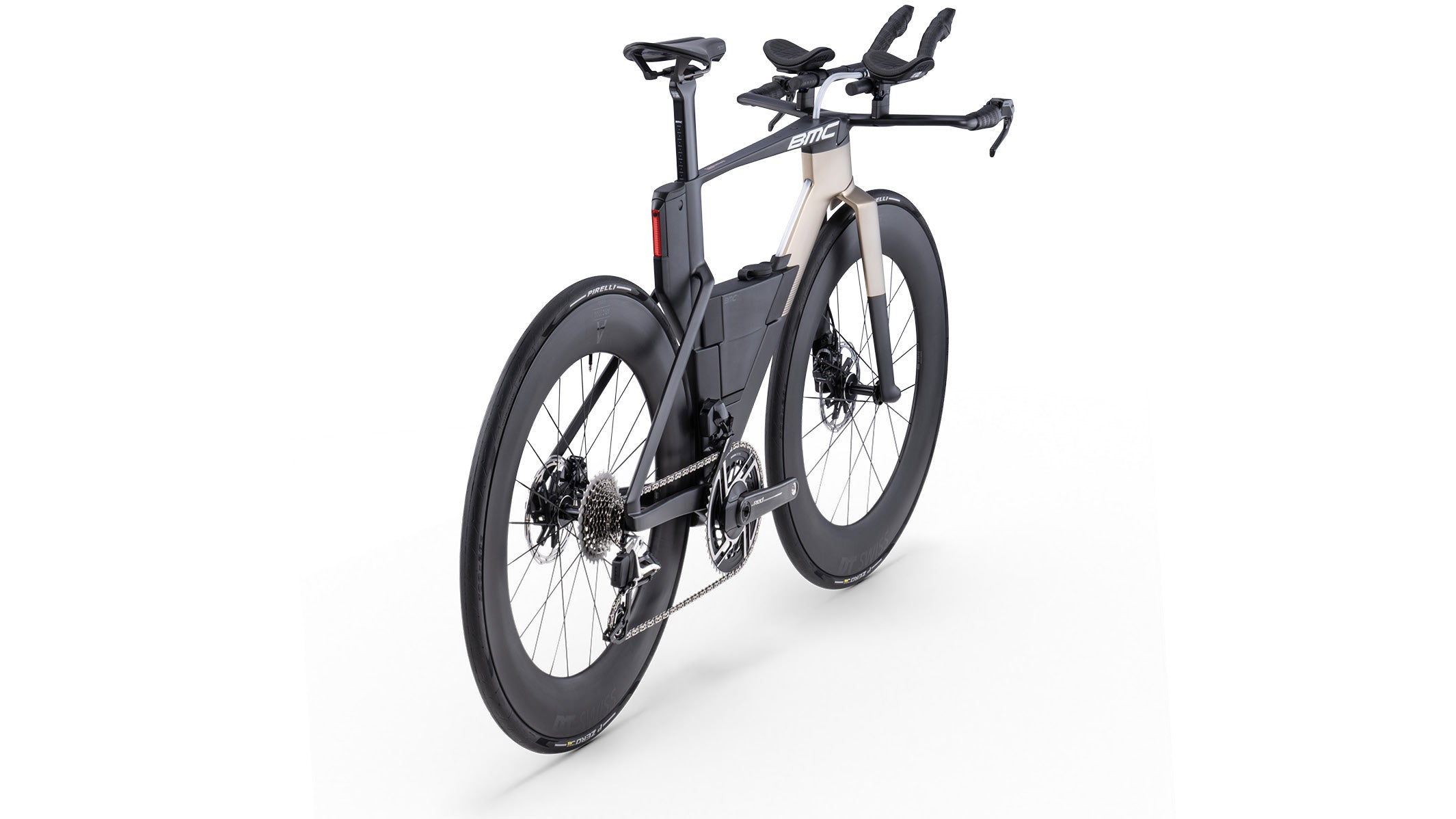

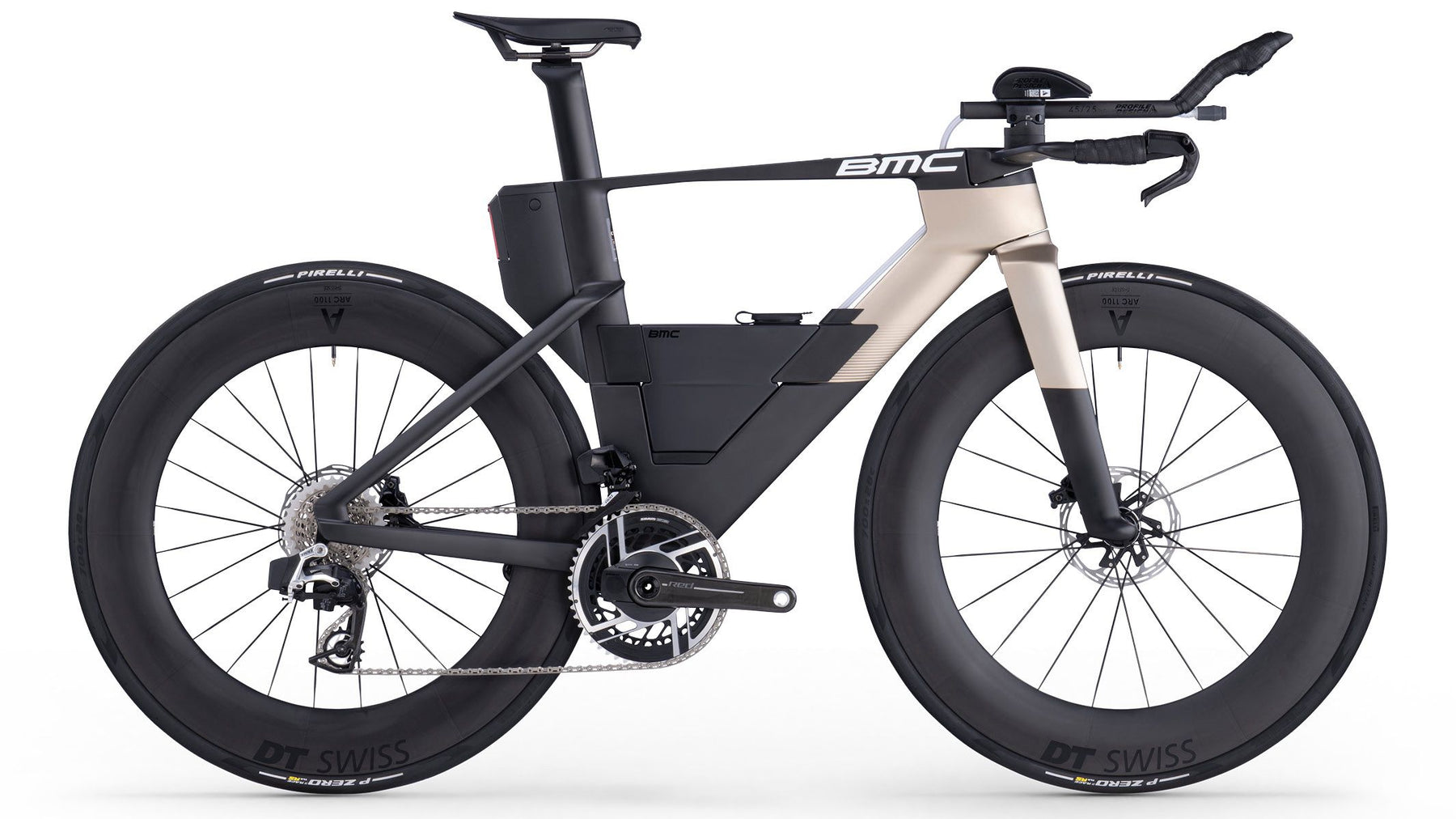

Speedmachine 01: Speed that adapts to the real world. This bike is built to perform beyond theory—optimized aerodynamics, rider-first geometry, and a fully integrated system make it fast where it matters most: on the road. Design collaboration between the BMC Impec Lab and Red Bull Advanced Technology Formula One development center, the Speedmachine 01 is the fastest triathlon bike the industry has to offer. Fit right to go fast with positionning with a front end by Profile Design Aeria 3 armrests and extensions. Featuring the top tier SRAM Red AXS drivetrain, equiped with powermeter, fitted with the newest DT Swiss ARC 1100 DiCut 65mm wheels.
Technology
Aero pur
Absolute Stabilität
Individuell anpassbar
Alles integriert.
Technical Overview
Frameset
Rahmen:
Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle
Gabel:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Cockpit
Lenker:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions
Seat
Sattelstütze:
Speedmachine 01 | 01 Premium Carbon Aero Seatpost | 0mm, 12.5mm, 25mm Offsets
Sattel:
Fizik Transiro Aeris Long Distance R3
Drivetrain
Kurbel:
SRAM Red AXS (FC-RED-P-E1)
Kettenblätter:
50-37T
Leistungsmesser:
SRAM Red AXS Power Meter (FC-RED-P-E1)
Kassette:
SRAM Red (CS-XG-1290-E1)
Kassettengrösse:
10-33T
Kette:
SRAM RED (CN-RED-E1)
Umwerfer:
SRAM RED AXS (FD-RED-E-E1)
Schaltwerk:
SRAM Red AXS (RD-RED-E-E1)
Schalthebel:
SRAM Blip AXS Wireless 4 units
Übersetzung:
2 x 12
Tretlager:
SRAM T47x68 DUB
Brakes
Bremshebel:
SRAM S-900 Aero HRD Disc Brake (DB-S-900-A1)
Bremsscheiben:
SRAM Paceline X | Centerlock
Bremsscheibengrösse (V/H):
160 / 160mm
Wheels
Felgen:
DT Swiss ARC 1100 DICUT | 85mm
Naben (V/H):
DT Swiss 180 DICUT | Ratchet EXP 36
Bereifung:
Pirelli P Zero Race TLR RS | Tubeless | 26mm front, 28mm rear
Tubeless-Informationen:
Tubeless Rim | Tubeless Tires
Accessories
Lieferumfang:
Fuel Tank 1200 with straw and bite valve | Rear Storage 260 | Intergrated Rear Light 25
Additional Information
Reifenfreiheit:
30mm measured tire
Gewicht ohne Pedale:
9.1kg | Size M as pictured with all accessories
ASTM-Klassifizierung:
Level 1
Maximales Systemgewicht:
110kg
Produktsicherheitsverordnung (GPSR):
Sicherheitshinweise GPSR (EU)
Verantwortliche Person gemäss GPSR (EU)
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Crank Length | 165 | 170 | 172.5 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
