Name: Trailfox TF02 XT
Brand: BMC
SKU: BMC-14a-000076-s0050
Availability: OutOfStock

Color: Red
Model Year: 2014

BMC Archive Product

Compatible Parts & Accessories

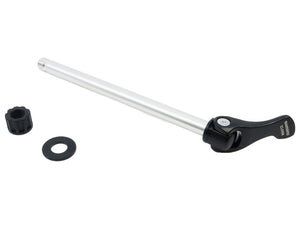

Axle / Nut

USD 99.00 View Product

Downtube Protector TF01 / 02 29

USD 19.00 View Product

Dropout - No 44

USD 25.00 View Product

Dropout - No 45

USD 25.00 View Product

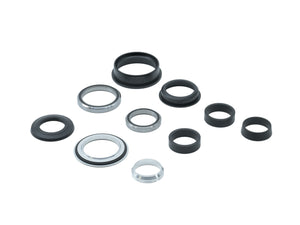

Headset A45AC1

USD 39.00 View Product

[{"id":40942695481423,"title":"S","option1":"S","option2":null,"option3":null,"sku":"BMC-14a-000076-s0050","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trailfox TF02 XT - S","public_title":"S","options":["S"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40942695678031,"title":"M","option1":"M","option2":null,"option3":null,"sku":"BMC-14a-000076-s0070","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trailfox TF02 XT - M","public_title":"M","options":["M"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40942695874639,"title":"L","option1":"L","option2":null,"option3":null,"sku":"BMC-14a-000076-s0090","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trailfox TF02 XT - L","public_title":"L","options":["L"],"price":0,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
APS (Rear Travel 150mm) | Carbon/Alloy

Fork:
Fox 34 Talas CTD E-S 150mm

Cockpit

Handlebar:
BMC MFB02

Stem:
Easton Haven

Seat

Seatpost:
Rock Shock Reverb Stealth 150mm

Saddle:
Fizik Tundra 2

Drivetrain

Gears:
2 x 10

Crankset:
Shimano XT 38-24

Cassette:
Shimano XT 11-36

Front Derailleur:
Shimano XT

Rear Derailleur:
Shimano XT Shadow PLUS

Shifters:
Shimano XT I-Spec

Brakes

Brake Levers / Calipers:
Shimano XT 203/180mm

Wheels

Rims:
DT Swiss M1700 Spline

Hubs (F/R):
DT Swiss M1700 Spline

Tires:
Continental Mountain King / x -King 2.4 Protec

Additional Information

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L
Rider Height	166-175	172-184	182-195
Reach	410	435	460
Stack	610	615	619
Bar Width	750	750	750
BB Drop	30	30	30
Crank Length	170	175	175
Head Tube	90	95	100
Head Tube Angle	67	67	67
Rear Center	435	435	435
Seat Angle	74	74	74
Seat Tube	400	440	480
Top Tube	585	611	638
