Real aero, real speed, real control. The BMC Speedmachine 01 FOUR combines aerodynamic mastery with unmatched rider fit adjustment range, giving you an edge beyond our lab and wind tunnel. Triathlon or time trial, regardless of race format, you will benefit from the engineering of Red Bull Advanced Technology and our BMC Impec Lab. Our Speedmachine 01 FOUR is fitted with components that prioritize you – like the Profile Design Aeria 3 armrests and extensions, the precise Shimano 105 Di2 as well as the Fizik Transiro Aeris – this bike is designed for speed that stands up to the demands of the road.

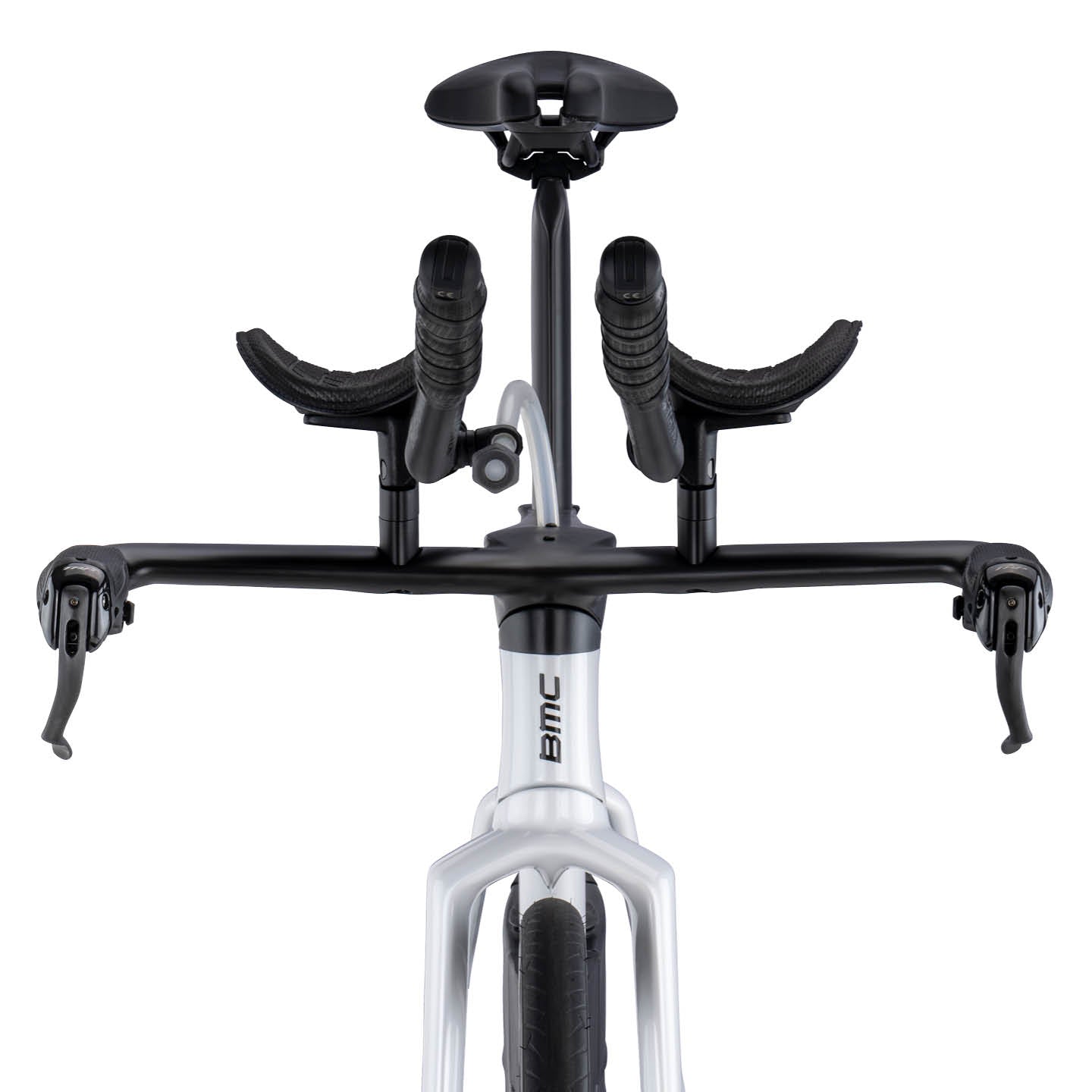

All Aero
Real aero, real speed, real control. The BMC Speedmachine 01 FOUR combines aerodynamic mastery with unmatched rider fit adjustment range, giving you an edge beyond our lab and wind tunnel. Triathlon or time trial, regardless of race format, you will benefit from the engineering of Red Bull Advanced Technology and our BMC Impec Lab. Our Speedmachine 01 FOUR is fitted with components that prioritize you – like the Profile Design Aeria 3 armrests and extensions, the precise Shimano 105 Di2 as well as the Fizik Transiro Aeris – this bike is designed for speed that stands up to the demands of the road.

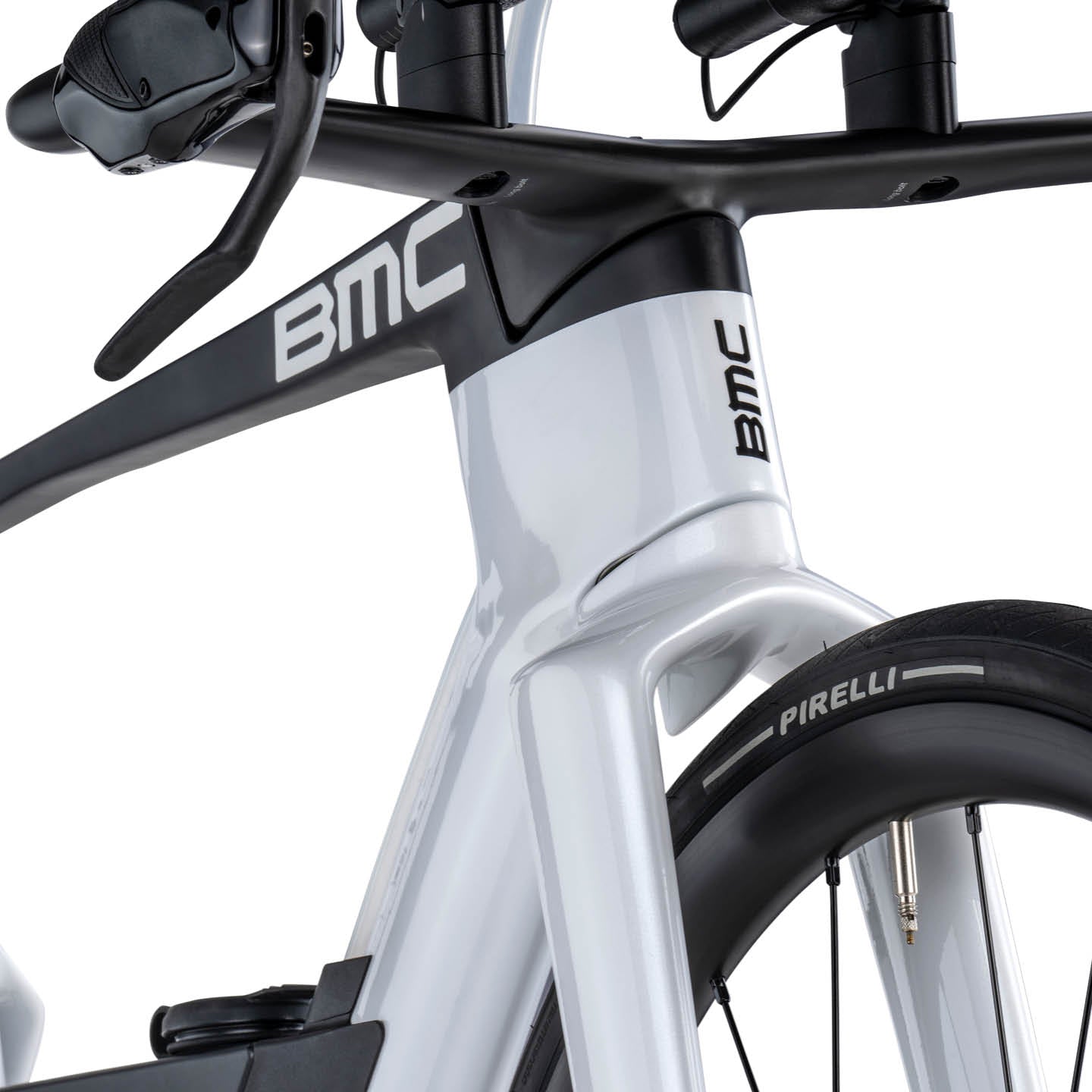

innovationVital Stability
With revolutionary steering geometry for stability and confidence in aero extensions, as well as redesigning tube shaping to enhance predictability in diverse conditions, the new system collectively offers remarkable stability in all conditions.

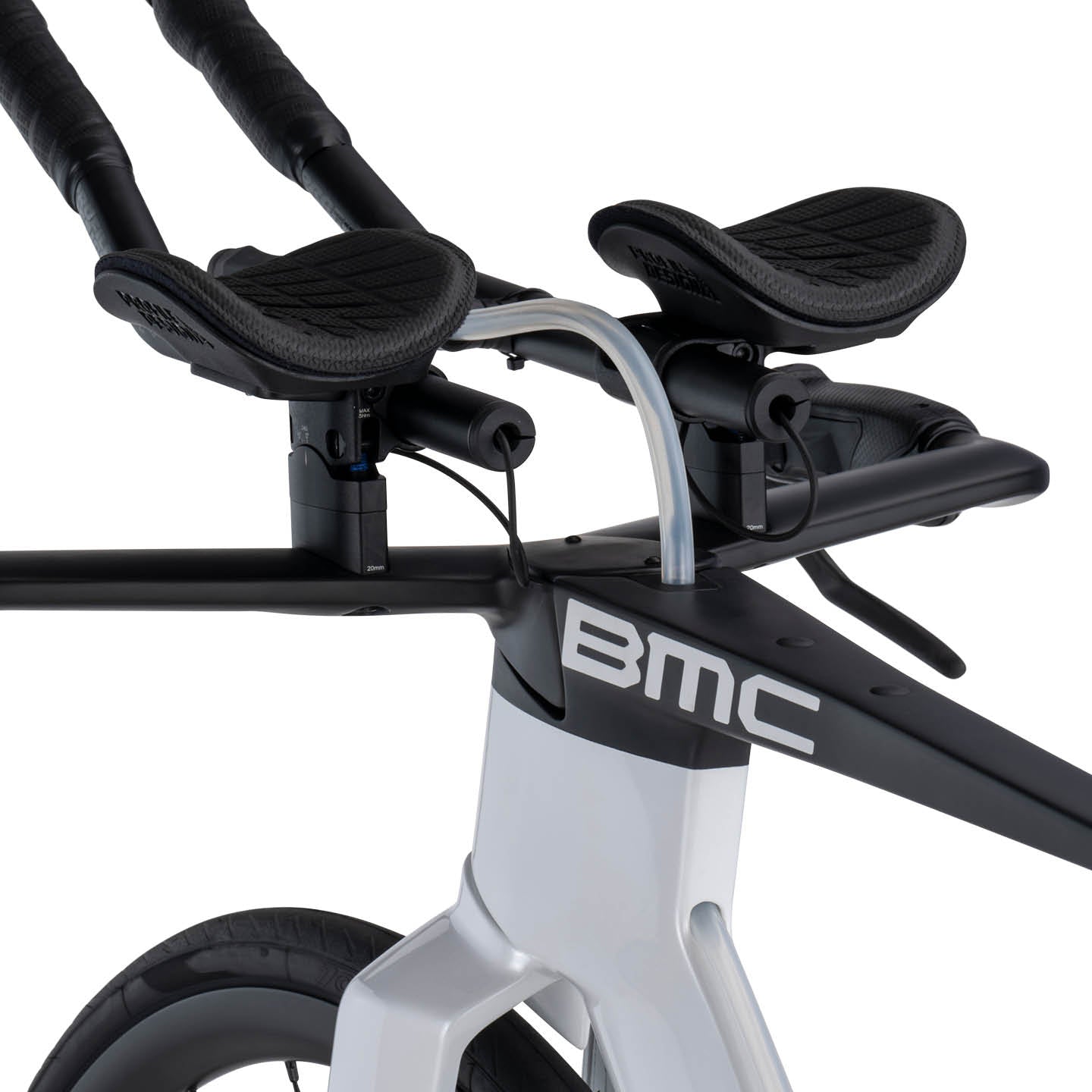

Adaptability
Reimagined cockpit design enhances travel convenience as well as maintenance. Numerous base-bar choices with a wide range of extension adjustments, provides the Speedmachine with a vast selection of stack, reach, and width possibilities.

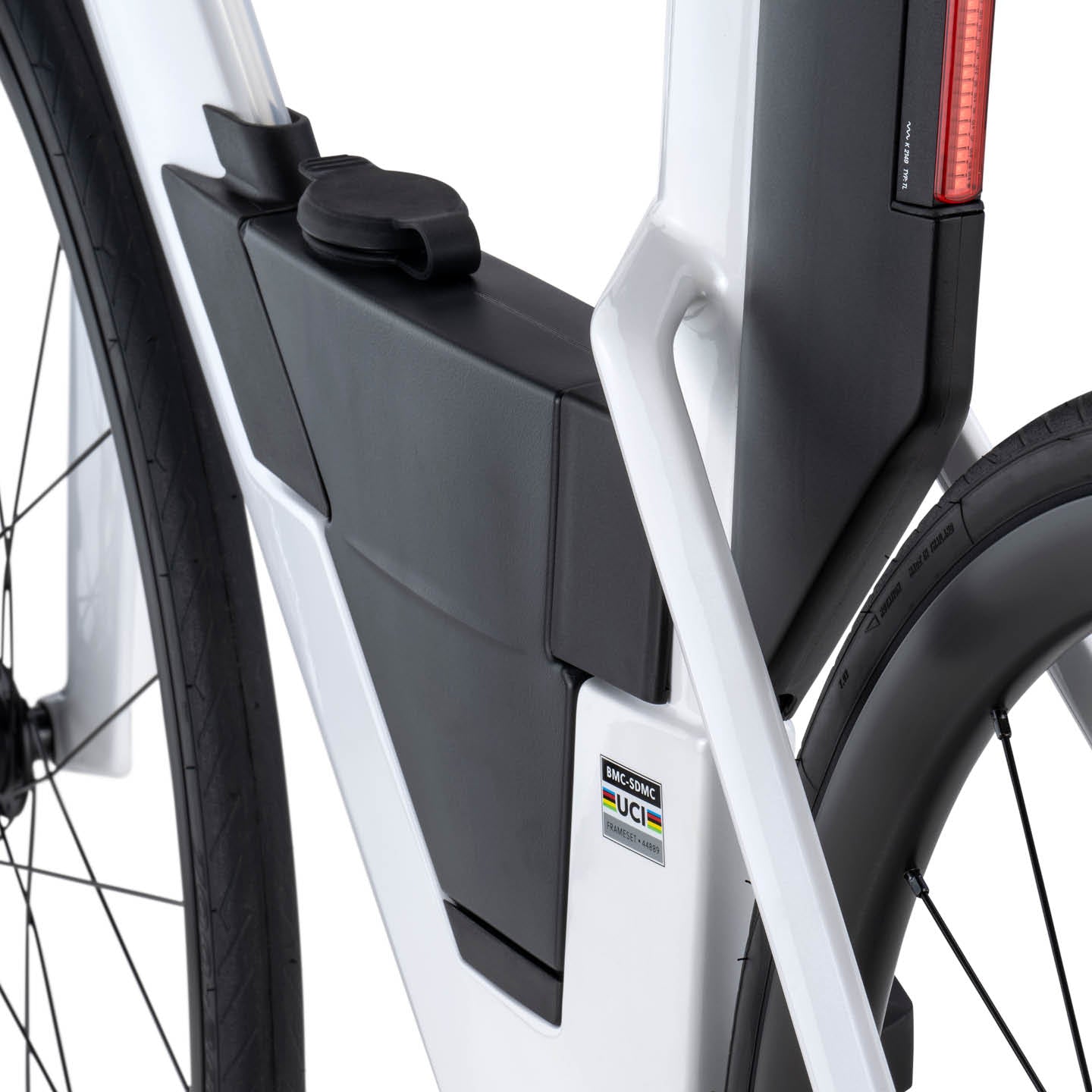

Everything. Integrated.
Advanced storage integration ensures riders have easy access to hydration, fuel, and essentials during extended journeys.
Technical Overview
Frameset
Frame:
Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle
Fork:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Cockpit
Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 26a Aluminum Aerobar Extensions
Seat
Seatpost:
Speedmachine 01 | 01 Premium Carbon Aero Seatpost | 0mm, 12.5mm, 25mm Offsets
Saddle:
Fizik Transiro Aeris Long Distance R5
Drivetrain
Crankset:
SHIMANO 105 (FC-R7100)
Chainrings:
52-36T
Cassette:
SHIMANO 105 (CS-R7101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M6100
Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)
Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)
Shifters:
SHIMANO Switch buttons Di2 (SW-R9160 & SW-R9150)
Gears:
2 x 12
Bottom Bracket:
Praxis T47 E.B. 68/73mm SHIMANO
Brakes
Brake Levers / Calipers:
TRP TT HYDRO HD-T910 Hydraulic
Rotors:
TRP R160C04M | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
AR 27 | Tubeless Ready | 27mm
Hubs (F/R):
CL-712 & RXC-142 Center Lock
Tires:
Pirelli P Zero Road TLR | Tubeless | 28mm [or] Vittoria Rubino IV | Tube type | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Fuel Tank 1200 with straw and bite valve | Rear Storage 260 | Intergrated Rear Light 25
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
10.1kg | Size M as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Crank Length | 165 | 170 | 172.5 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
